VSD Air Compressor Systems: All-in-One Rotary Screw

What a VSD all-in-one system is

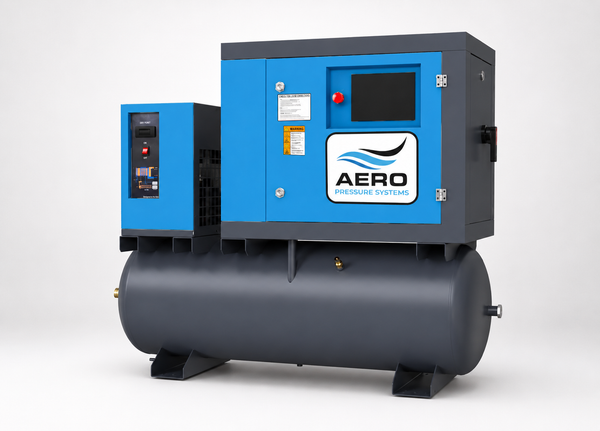

A variable speed rotary screw air compressor changes motor speed to match the air your shop is actually using, instead of running flat out and cycling off. Every AERO All-in-One puts that VSD compressor, a refrigerated air dryer, filtration and an ASME air receiver on one frame: one power feed, one air line, dry air at up to 145 PSI. Buying a VSD air compressor this way means the dryer and tank are already matched to it.

Who it is for

New auto body and repair shops, tire service, woodworking, fabrication and light manufacturing. If you are replacing a piston compressor and a mismatched dryer and tank, or opening a new bay, this collection handles the whole air system in one purchase.

How to choose between the models

Size on CFM at the pressure you run, not on horsepower alone. All five reach 145 PSI; the CFM figures below are at 100 PSI.

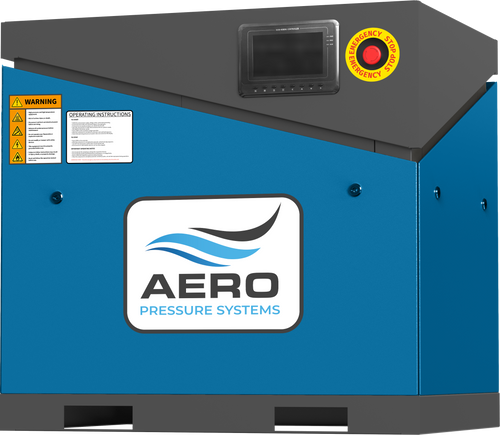

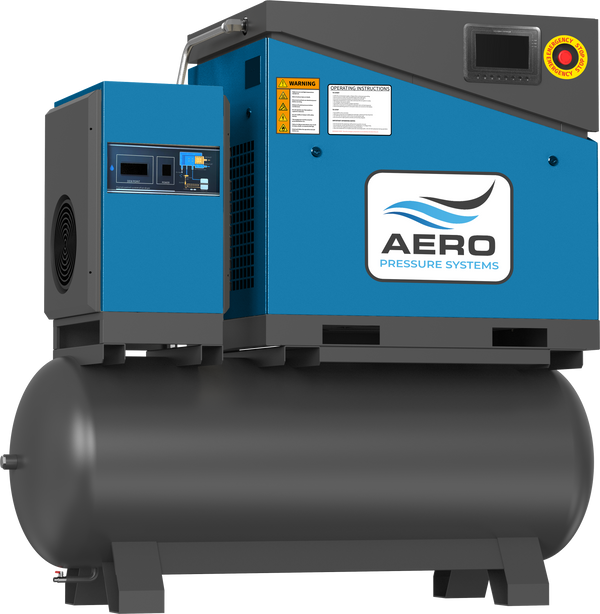

• VSD10: 10 HP, 38 CFM, 132-gallon tank, 220V 3-phase, 32 A. One or two techs on air tools, sanding, tire work. From $9,850.
• VSD15: 15 HP, 60 CFM, 145-gallon tank, 220V 3-phase, 46 A. A small body shop or several bays sharing air. From $11,500.
• VSD20: 20 HP, 80 CFM, 145-gallon tank, 220V 3-phase, 62 A. Our best seller for full body shops and fab work. From $12,750. The same package in 460V draws 32 A, from $12,450.
• VSD30: 30 HP, 124 CFM, 158-gallon tank, 220V 3-phase, 87 A. Multiple spray and sanding users, CNC, small production. From $16,950.

Every model needs 3-phase power, so check your panel first. Not sure of your CFM? Read how to size an air compressor or ask us for a sizing quote.

What is included

• Direct-drive rotary screw compressor, permanent magnet motor, variable speed drive, 100% duty cycle

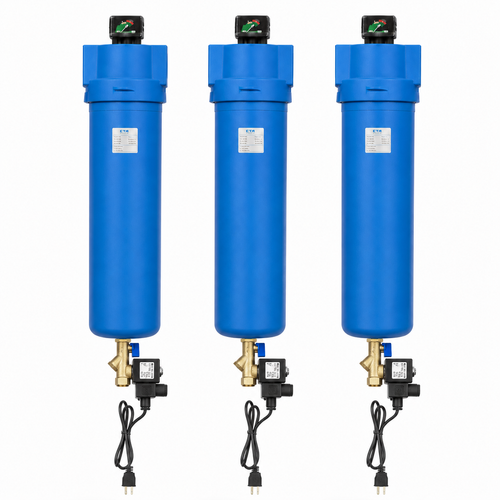

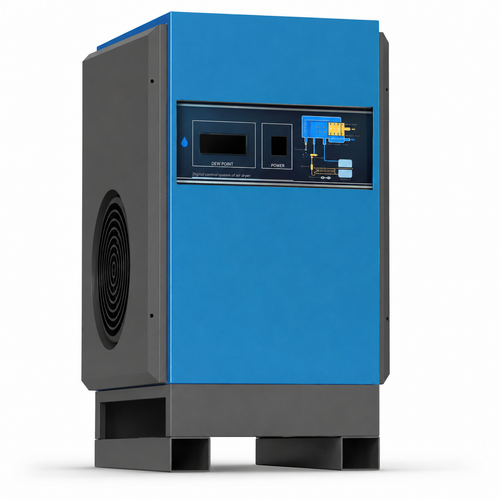

• Refrigerated air dryer and filtration (CTA multi-stage filtration is optional on the VSD30; see the product page)

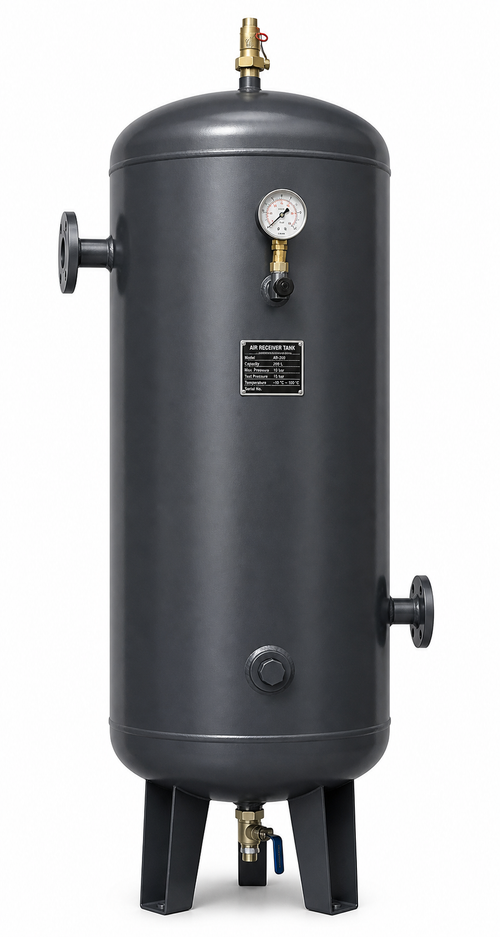

• ASME air receiver, 132 to 158 gallons by model, G3/4" outlet
• MAM6080 touchscreen controller with WiFi and real-time monitoring
• IP54 enclosure; 65 dB(A) on the 10 to 20 HP models, 75 dB(A) on the 30 HP

Electrical hookup must be done by a qualified electrician to local code.

Lead time, freight and financing

In-stock machines ship in 2 business days. Freight is free to commercial addresses in the continental US; these are LTL shipments of 840 to 1,450 lb. Financing from $5,000 is available through PEAC Solutions: apply online, or request a quote and we will size it with you.
