The Right Air, For Every Shop.
Engineered systems for your exact duty cycle, air purity requirements, and environment. Scroll down to explore what makes AERO different — inside and out.

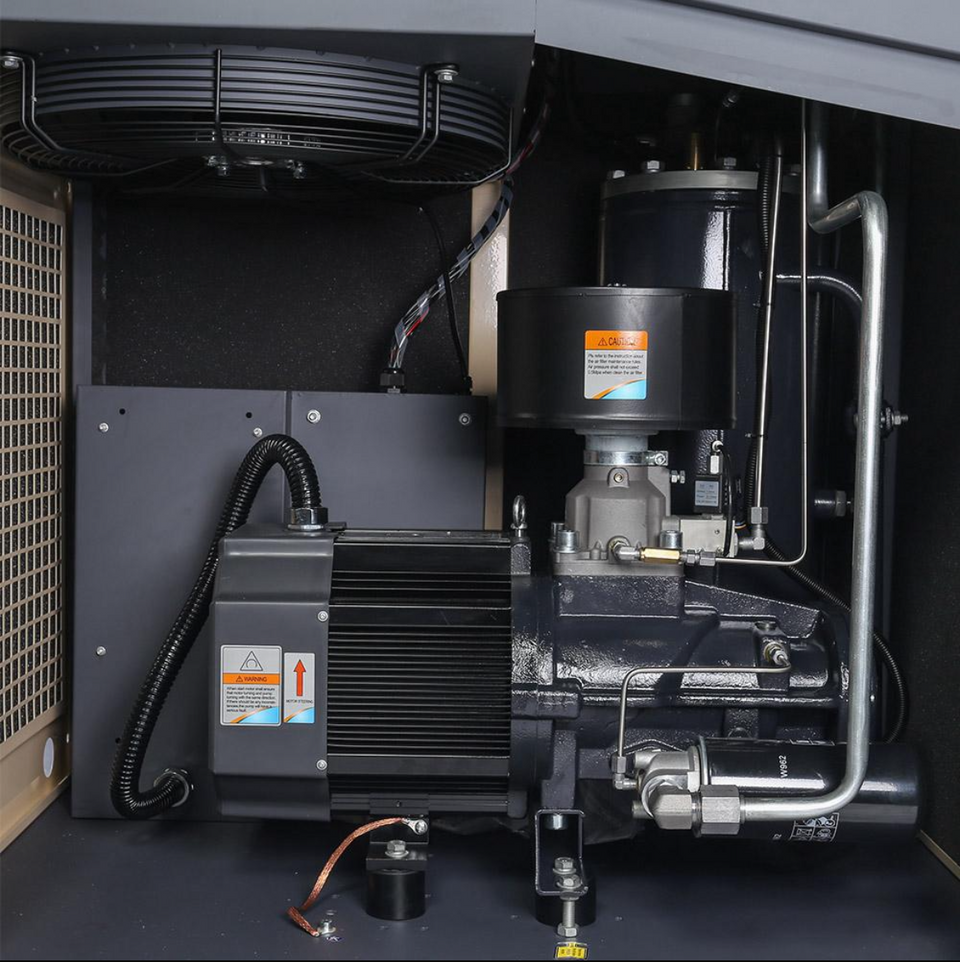

See What's InsideBuilt Different. Inside and Out.
Scroll through each numbered component and discover why the AERO 20HP outperforms conventional systems.
Oil-Cooled Motor & Cooling Design
The permanent-magnet motor is oil-cooled with an IP65 protection rating — no cooling fan, no bearing mechanical loss, low vibration. Removing the cooling fan eliminates fan power draw entirely and keeps the cabinet quiet under continuous load.
Permanent Magnet Motor — Never Demagnetizes
Built with UH-grade Nd-Fe-B permanent magnet material rated to 180°C, the motor holds its magnetism and efficiency for the life of the machine — it never demagnetizes. The oil-cooled PM design runs 3–10% more efficient than an equivalent-capacity asynchronous motor.
Zero-Loss Direct Drive
The main air end and the motor share a single shaft. There is no center bracket, coupling, belt, pulley, or gear between them — so transmission loss is reduced to zero and transmission efficiency reaches 100%. Fewer parts also means fewer wear points and less scheduled service.
V-Profile Rotary Screw Air End
The rotor profile was developed in partnership with City University of London. Its high volumetric efficiency, well-positioned rotor contact points, and small exhaust-side leakage triangle make it one of the highest energy-efficiency profiles available — single-stage compression that meets or exceeds first-level energy-efficiency ratings across the product line.
Intelligent Control & Quiet Operation
An INOVANCE variable-frequency inverter keeps operation stable across the full speed range. The color touchscreen controller provides active protection, alarms, and maintenance reminders, and runs the system automatically 24 hours a day. Full-load noise stays in the 68–74 dB range.
Your Industry. Your Requirements.
Every vertical has unique demands. We've pre-configured the right system for yours.
Zero moisture.
Perfect finish.
Body shops need clean, dry, stable air for a consistent finish. The integrated refrigerated dryer plus the 3-stage CTA filter train remove moisture, particulate, and oil aerosol before air reaches your spray guns.
- Refrigerated-dry air (≈38–50°F pressure dew point)
- 3-stage CTA filtration to 0.01 µm
- Residual oil down to 0.01 PPM (near oil-free)
- Stable 90–120 PSI line pressure
Zero pressure drop.
Zero downtime.
Machining centers can't absorb pressure drops during tool changes. The Variable Speed Drive responds in milliseconds — rock-solid pressure at 100% continuous duty.
- 100% continuous duty cycle
- VSD response <100ms to demand spikes
- 100–145 PSI stable line pressure
- Compact All-In-One or Stand Alone cabinet
High volume.
Dusty conditions.
CNC routers and wide-belt sanders run all day. The oversized coolers and filter systems handle dusty shop air without clogging or overheating — shift after shift.
- High CFM delivery (30–100 CFM)
- Dust-resistant intake filtration
- Simple scheduled maintenance (500 hr then 2,500 hr)
- Low noise for enclosed spaces
Dependable air.
Every shift.
Lifts, impact guns, bead seaters, and tire inflation all day. AERO systems size properly for your bay count — no pressure droop, no compressor that can't keep up.
- Adequate tank volume per bay count
- Fast recovery between cycles
- 125–145 PSI for lift operation
- Simple maintenance schedule
Not sure which system fits your shop?
Our sizing tool asks 5 questions and recommends the exact system — CFM, tank size, pressure, and more.
Start System Sizing →
