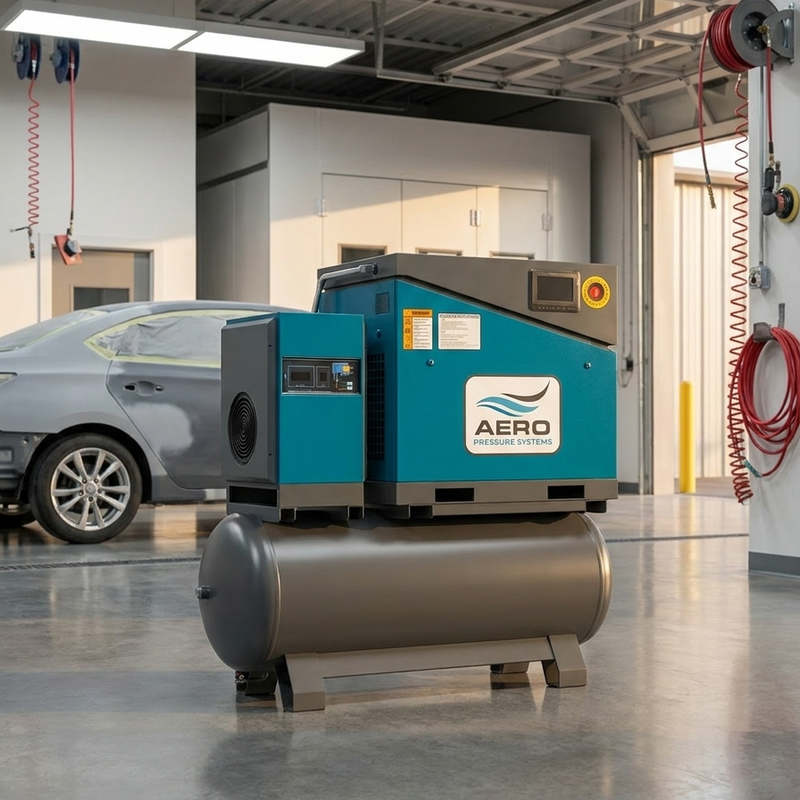

AERO All-in-One VSD20 — 20 HP Rotary Screw Compressor System

Complete 20 HP All-in-One VSD Compressor System for New Shops and Facility Upgrades

The AERO-ALL-IN-ONE VSD20 is a complete 20 HP VSD rotary screw compressor system designed for shops that want a clean, efficient, and ready-to-install compressed air package. Built for new auto body shops, repair facilities, woodworking shops, fabrication areas, and light industrial operations, this system includes the key components most facilities need: compressor, refrigerated dryer, filtration, and an integrated 145-gallon ASME air receiver.

Delivering up to 80 CFM at 100 PSI, 75 CFM at 116 PSI, and 70 CFM at 145 PSI, the AERO-ALL-IN-ONE VSD20 provides dependable air capacity for pneumatic tools, sanding stations, spray applications, tire service, maintenance work, and light production equipment. For a new shop setup, this all-in-one design helps reduce equipment selection time, saves floor space, and simplifies the compressed air layout compared with buying separate components.

Built with a variable speed motor, direct-drive rotary screw airend, and VSD technology, the system automatically adjusts compressor output based on real-time air demand. The MAM6080 touchscreen controller provides access to pressure, temperature, operating status, alarms, maintenance information, WiFi connectivity, and real-time monitoring. With 220V / 60Hz / 3-phase power, 62 A full load current, IP54 dust and splash protection, a 100% duty cycle, and quiet 65 dB(A) operation, this package is built for demanding daily shop use.

Key Features

• Complete all-in-one compressor system with compressor, dryer, filtration, and tank
• 20 HP VSD rotary screw compressor for efficient professional air production
• 80 CFM at 100 PSI for high-volume shop air demand
• 70 CFM at 145 PSI for demanding compressed air applications
• Integrated 145-gallon ASME air receiver for stable air storage
• MAM6080 touchscreen controller with WiFi and real-time monitoring
• 220V / 60Hz / 3-phase power with 62 A full load current

Ideal for New Shop Builds and Complete Air System Upgrades

This 20 HP all-in-one air compressor system is a strong choice for shop owners opening a new facility or replacing an outdated compressed air setup. Instead of sourcing a separate compressor, dryer, filters, and receiver tank, the AERO-ALL-IN-ONE VSD20 provides a more organized package designed to work together.

It is well suited for auto body shops, mechanical repair shops, woodworking shops, fabrication departments, tire service facilities, maintenance teams, and small manufacturing operations. Common applications include sanding tools, spray equipment, blow guns, pneumatic lifts, tire inflation, small CNC machines, packaging tools, and general shop air distribution.

Why Choose an All-in-One Compressor System?

An all-in-one system helps simplify compressed air planning. For shop owners, that means fewer equipment decisions, cleaner installation, better space utilization, and a more professional mechanical room layout. The integrated dryer and filtration help reduce moisture and contaminants before air reaches your tools and equipment, while the ASME air receiver helps stabilize pressure and reduce unnecessary compressor cycling.

Technical Specifications

Electrical installation must be completed by a qualified electrician in accordance with local electrical codes.

Why Choose the AERO-ALL-IN-ONE VSD20?

The AERO-ALL-IN-ONE VSD20 is built for shop owners who want a complete, professional compressed air system without piecing together separate components. It combines the efficiency of a 20 HP VSD rotary screw compressor, the convenience of an integrated dryer and filtration package, and the stability of a 145-gallon ASME air receiver. For new shops and growing facilities, it provides a cleaner, more efficient, and easier-to-plan compressed air solution.
