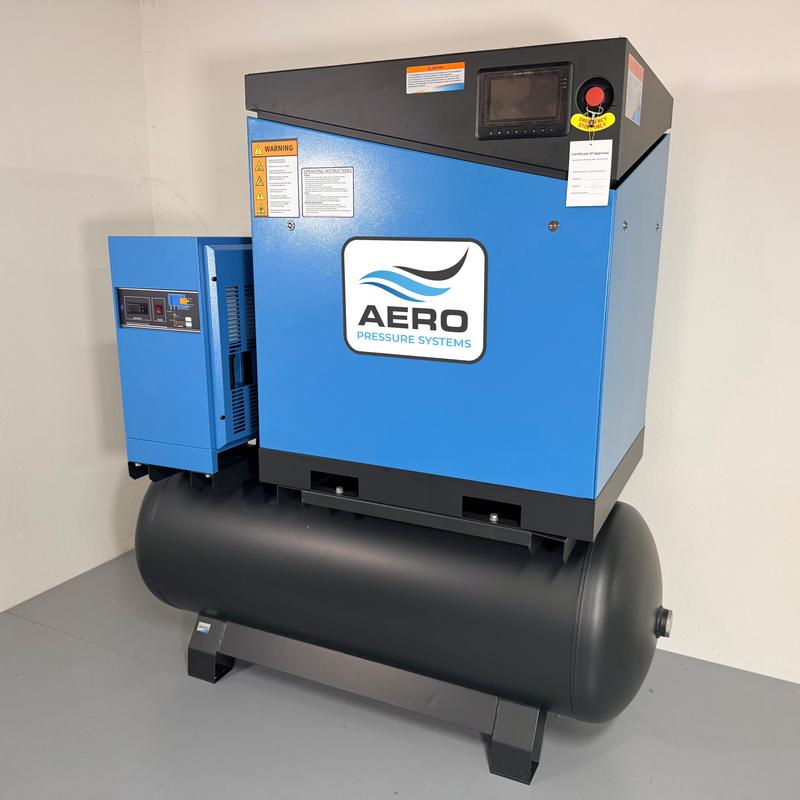

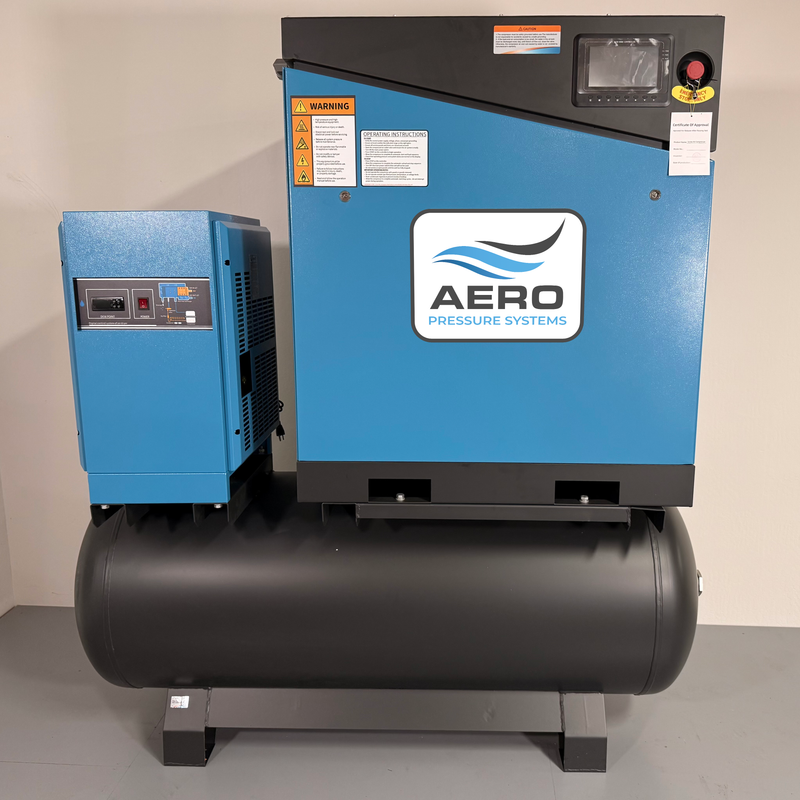

AERO All-in-One VSD10 — 10 HP Rotary Screw Compressor System

Complete 10 HP All-in-One VSD Compressor System for Small Shops and New Garages

The AERO-ALL-IN-ONE VSD10 is a complete 10 HP VSD rotary screw compressor system designed for small shops, new garages, auto repair facilities, body shops, woodworking shops, and light industrial users who want a clean, ready-to-install compressed air package. This system combines the main components most shops need: compressor, refrigerated dryer, filtration, and an integrated 132-gallon ASME air receiver.

Delivering up to 38 CFM at 100 PSI, 35 CFM at 116 PSI, and 32 CFM at 145 PSI, the AERO-ALL-IN-ONE VSD10 provides reliable air capacity for pneumatic tools, sanding stations, tire inflation, blow guns, maintenance work, light fabrication, and general shop air. For a new shop setup, the all-in-one design helps reduce equipment selection time, saves floor space, and simplifies installation planning compared with buying a separate compressor, dryer, filters, and receiver tank.

Built with a permanent magnet motor, direct-drive rotary screw airend, and VSD technology, the system automatically adjusts compressor output based on real-time air demand. The MAM6080 touchscreen controller provides access to pressure, temperature, operating status, alarms, maintenance information, WiFi connectivity, and real-time monitoring. With 220V / 60Hz / 3-phase power, 32 A full load current, IP54 dust and splash protection, a 100% duty cycle, and quiet 65 dB(A) operation, this package is built for serious daily shop use.

Key Features

• Complete all-in-one compressor system with compressor, dryer, filtration, and tank
• 10 HP permanent magnet motor for efficient shop air production
• 38 CFM at 100 PSI for small shop compressed air demand
• 32 CFM at 145 PSI for higher-pressure air applications
• Integrated 132-gallon ASME air receiver for stable air storage
• MAM6080 touchscreen controller with WiFi and real-time monitoring
• 220V / 60Hz / 3-phase power with 32 A full load current

Ideal for Small Shops, New Garages, and Complete Air System Upgrades

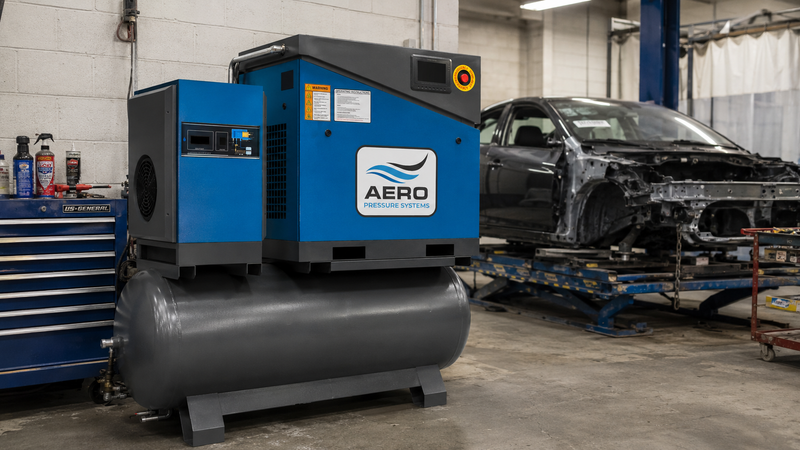

This 10 HP all-in-one air compressor system is a practical choice for shop owners opening a new location or upgrading from a loud piston compressor setup. Instead of sourcing separate components, the AERO-ALL-IN-ONE VSD10 provides a cleaner, more organized package designed to work together.

It is well suited for auto repair shops, small body shops, tire service areas, woodworking garages, maintenance departments, farm shops, fabrication areas, and advanced home garages. Common applications include air tools, sanding tools, blow guns, tire inflation, detailing equipment, light CNC equipment, and general compressed air distribution.

Why Choose an All-in-One Compressor System?

An all-in-one system helps simplify compressed air planning. For small shop owners, that means fewer equipment decisions, cleaner installation, better use of floor space, and a more professional compressor area. The integrated dryer and filtration help reduce moisture and contaminants before air reaches your tools and equipment, while the ASME air receiver helps stabilize pressure and reduce unnecessary compressor cycling.

Technical Specifications

Electrical installation must be completed by a qualified electrician in accordance with local electrical codes.

Why Choose the AERO-ALL-IN-ONE VSD10?

The AERO-ALL-IN-ONE VSD10 is built for shop owners who want a complete compressed air system without piecing together separate components. It combines the efficiency of a 10 HP VSD rotary screw compressor, the convenience of an integrated dryer and filtration package, and the stability of a 132-gallon ASME air receiver. For small shops, new garages, and growing facilities, it provides a cleaner, quieter, and easier-to-plan compressed air solution.
