AERO VSD Systems combine intelligent energy management with direct-drive reliability. Built for continuous industrial operation, providing clean, stable air in demanding environments.
We eliminated the complexity of traditional air systems. Every AERO system arrives fully integrated, rigorously tested, and immediately ready to work.
Variable Speed Drive directly coupled to a Permanent Magnet motor eliminates transmission losses and precisely matches output to your demand.
Advanced controllers offer intuitive operation, real-time monitoring, alarms, and WiFi for optimized system management.
Oversized coolers, heavy-duty enclosures, and premium components provide continuous 100% duty cycle operation in harsh environments.
Scroll through an All-in-One VSD20 as it comes apart: the drive, the controls, the air treatment, and the details that make it quick to service.
01The system

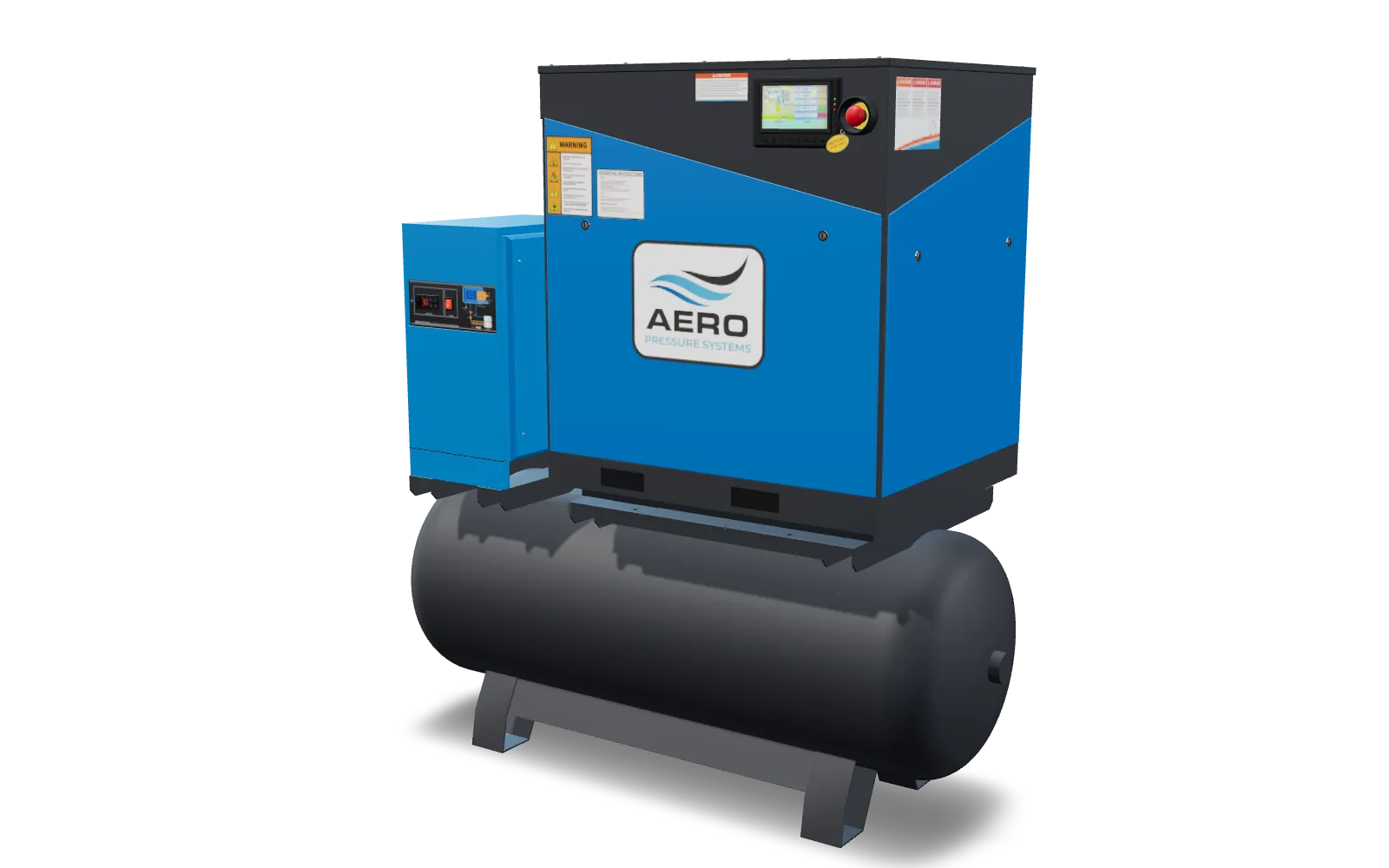

The All-in-One VSD20 puts a variable-speed screw compressor, a refrigerated dryer and a 145 gal ASME-certified receiver on one factory-integrated frame.
02Service access
Every panel lifts off on quarter-turn latches. Turn the front two and the panel comes away, with the motor, airend and filters right behind it. Service points are reachable without major disassembly.
03Controls
Live pressure, discharge temperature, motor current, voltage and frequency. Setpoints, service timers and clear alarm messages, right on the front of the machine.
04Direct drive
The oil-cooled permanent-magnet motor and the V-profile airend share one direct-drive shaft: no belts, no couplings, no gears. The airend was developed with City St George's, University of London.
05Variable speed
An INOVANCE inverter runs the motor at the speed your air use calls for, standard on every unit. The refrigerated dryer has anti-freeze protection; electric automatic drains clear the condensate.
* Compared with fixed-speed operation. Actual savings depend on your air demand profile, running hours and energy prices.Savings depend on your demand profile.
06Every part
SKF bearings, Saint-Gobain oil seals and Schneider Electric contactors.
Illustrative 3D model of the All-in-One VSD20. All-in-One VSD20: 80 / 75 / 70 cfm at 100 / 116 / 145 psig; 76.77 × 32.28 × 78.34 in.
A pencil cutaway of the complete package: compressor, coolers, the 145-gallon tank, the refrigerated dryer and the filters. Watch it draw itself, then follow the air from the room to your tools.
Drag sideways to see the whole drawing →
Seven steps happen inside one footprint: air is drawn in, squeezed, stripped of oil, cooled, stored, dried and filtered. Pick a step to light it up in the drawing, or drag the demand slider to watch the variable-speed drive react.
Illustrative cutaway: part positions are simplified and not to scale, and the speed, flow and pressure readouts are a demonstration, not live data. Specs from the VSD20 product page; dew point range from the AERO installation guide (dryer section); discharge temperature range from the AERO user manual.
See the VSD20One small box wires into your compressor and dryer. It starts and stops them on your schedule, watches every reading around the clock, and puts the whole room on your phone — from anywhere.
Air is ready when the shop opens and off at close. No more paying for a machine idling through the afternoon.
Automatic notifications for troubleshooting and machine status — on your phone the moment something needs attention, not Monday morning.
A monthly report prices your air — and shows what a fixed-speed compressor would have cost, measured from your own machine.
Run hours counted down to the next visit, history kept. The machine tells you when it’s due — before it matters.
Fitted in minutes. Two plugs — either cable, either port, the gateway works out which machine is which. Setup is a phone app, and the same account works in any browser.
Choose the configuration that fits your application. Every AERO series is engineered for continuous industrial duty.

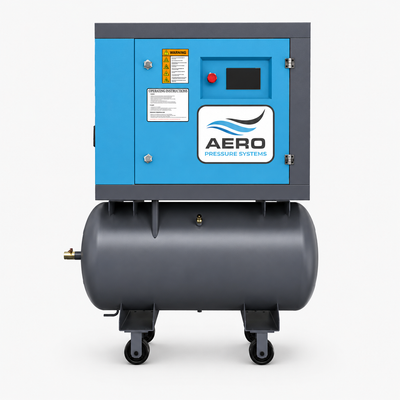

Compact air systems for garages, small shops, and light-duty professional use
View Specifications →

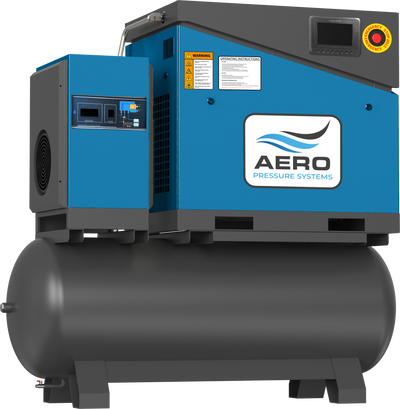

The complete packaged solution, variable speed rotary screw compressor, refrigerated air dryer, and receiver tank in one compact footprint.
View Specifications →

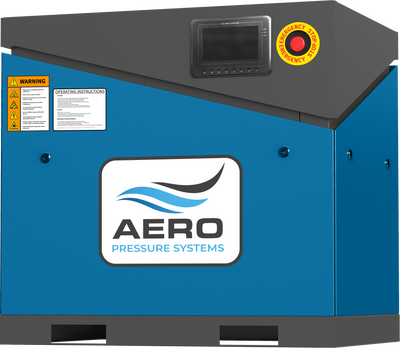

Our rugged base-mount variable speed VSD compressor. Perfect for expanding existing systems, replacing old compressor or custom builds.
View Specifications →AERO compressor systems are designed for professional shops that need clean, reliable compressed air for daily operation. From pneumatic tools and paint booth support to CNC, woodworking, and general manufacturing applications.
Paint booths & pneumatic tooling
Metal working 100% duty cycle
Cutting wood
continuous plant air for production lines
Everything you need to know about sizing, capabilities, and system configuration.
Access our comprehensive technical library. Installation manuals, dimensional drawings, and maintenance schedules — all in one place. Not sure what size you need? Start with the sizing guide.
