AERO All-in-One VSD7.5 — 7.5 HP Single-Phase Compressor System

Complete 7.5 HP All-in-One Single-Phase VSD Compressor System for Garages and Small Shops

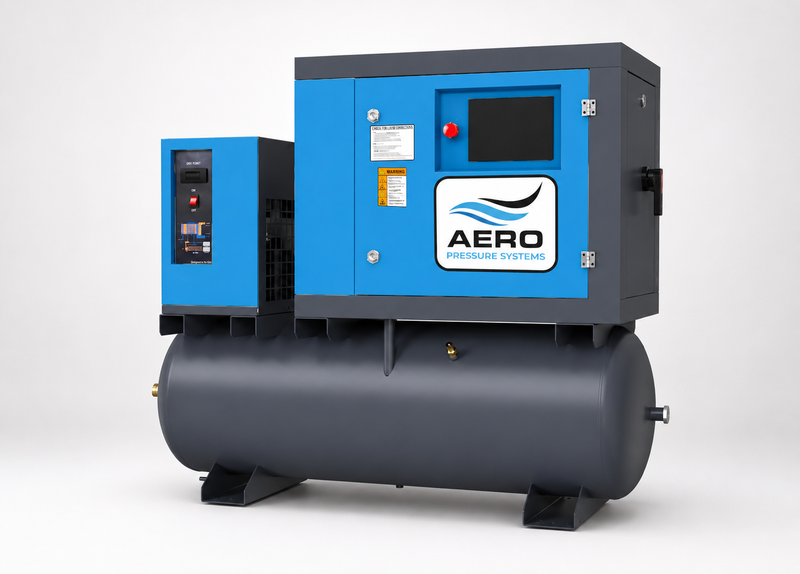

The AERO-ALL-IN-ONE PM7.5 is a complete 7.5 HP single-phase permanent magnet VSD rotary screw compressor system designed for garages, home shops, auto repair facilities, body shops, woodworking shops, and small commercial users who want a clean, ready-to-install compressed air package on standard 220V single-phase power. This system combines the main components most shops need: compressor, refrigerated dryer, filtration, and an integrated 53-gallon ASME air receiver.

Delivering up to 24 CFM at 100 PSI and 20.8 CFM at 145 PSI, the AERO-ALL-IN-ONE PM7.5 provides reliable air capacity for pneumatic tools, sanding stations, tire inflation, blow guns, maintenance work, light fabrication, and general shop air. For shops without 3-phase power, the all-in-one design helps reduce equipment selection time, saves floor space, and simplifies installation planning compared with buying a separate compressor, dryer, filters, and receiver tank.

Built with a permanent magnet VSD motor, direct-drive rotary screw airend, and variable speed drive technology, the system automatically adjusts compressor output based on real-time air demand. The MAM6080 touchscreen controller provides access to pressure, temperature, operating status, alarms, maintenance information, WiFi connectivity, and real-time monitoring. With 220V / 60Hz / single-phase power, IP65 dust and water protection, a 100% duty cycle, and quiet 65 dB(A) operation, this package is built for serious daily shop use.

Key Features

• Complete all-in-one compressor system with compressor, dryer, filtration, and tank
• 7.5 HP permanent magnet VSD motor for efficient shop air production
• 24 CFM at 100 PSI for garage and small shop compressed air demand
• 20.8 CFM at 145 PSI for higher-pressure air applications
• Integrated 53-gallon ASME air receiver for stable air storage
• MAM6080 touchscreen controller with WiFi and real-time monitoring
• 220V / 60Hz / single-phase power — no 3-phase service required

Ideal for Garages, Small Shops, and Single-Phase Installations

This 7.5 HP single-phase all-in-one air compressor system is a practical choice for shop owners who want a complete compressed air package but only have access to standard 220V single-phase power. Instead of sourcing separate components or settling for a noisy piston compressor, the AERO-ALL-IN-ONE PM7.5 provides a cleaner, more organized package designed to work together.

It is well suited for home garages, small auto repair shops, body shops, tire service areas, woodworking garages, maintenance departments, farm shops, fabrication areas, and advanced DIY workshops. Common applications include air tools, sanding tools, blow guns, tire inflation, detailing equipment, light CNC equipment, and general compressed air distribution.

Why Choose an All-in-One Single-Phase VSD System?

An all-in-one system helps simplify compressed air planning, especially for shops without 3-phase electrical service. For small shop owners, that means fewer equipment decisions, cleaner installation, better use of floor space, and a more professional compressor area. The integrated dryer and filtration help reduce moisture and contaminants before air reaches your tools and equipment, while the ASME air receiver helps stabilize pressure and reduce unnecessary compressor cycling. The permanent magnet VSD motor delivers quieter, more efficient operation than fixed-speed piston compressors.

Technical Specifications

Electrical installation must be completed by a qualified electrician in accordance with local electrical codes.

Why Choose the AERO-ALL-IN-ONE PM7.5?

The AERO-ALL-IN-ONE PM7.5 is built for shop owners who want a complete compressed air system without piecing together separate components — and without needing 3-phase power. It combines the efficiency of a 7.5 HP permanent magnet VSD rotary screw compressor, the convenience of an integrated dryer and filtration package, and the stability of a 53-gallon ASME air receiver. For home garages, small shops, and single-phase facilities, it provides a cleaner, quieter, and easier-to-plan compressed air solution.
