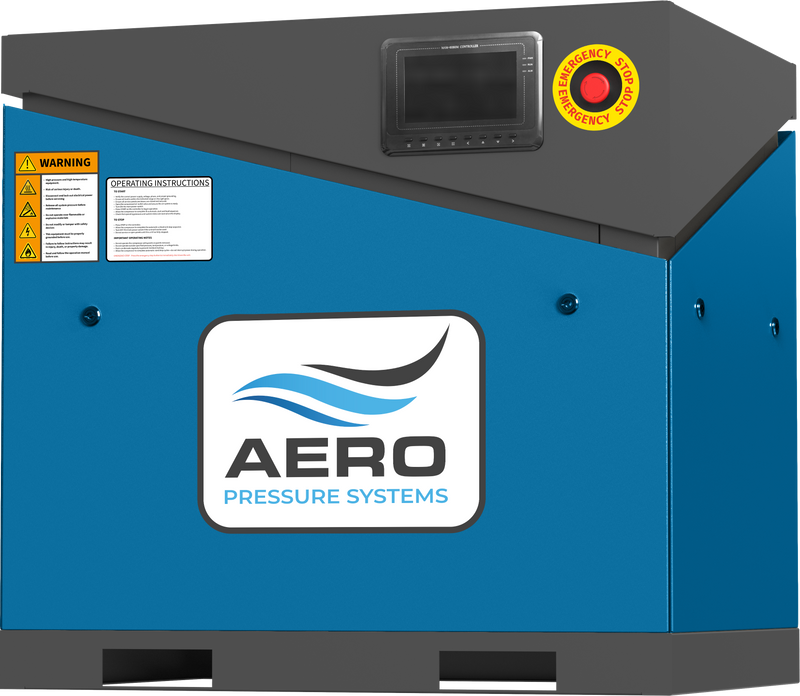

AERO VSD30 — 30 HP Rotary Screw Air Compressor

Industrial 30 HP VSD Rotary Screw Compressor for High Air Demand

The AERO-COMPRESSOR VSD30 is a 30 HP VSD rotary screw compressor designed for auto body shops, repair facilities, woodworking shops, fabrication departments, manufacturing areas, and industrial applications that need reliable compressed air with improved energy efficiency. Delivering up to 124 CFM at 100 PSI, 118 CFM at 116 PSI, and 108 CFM at 145 PSI, this compressor provides strong air output for demanding shop and production environments.

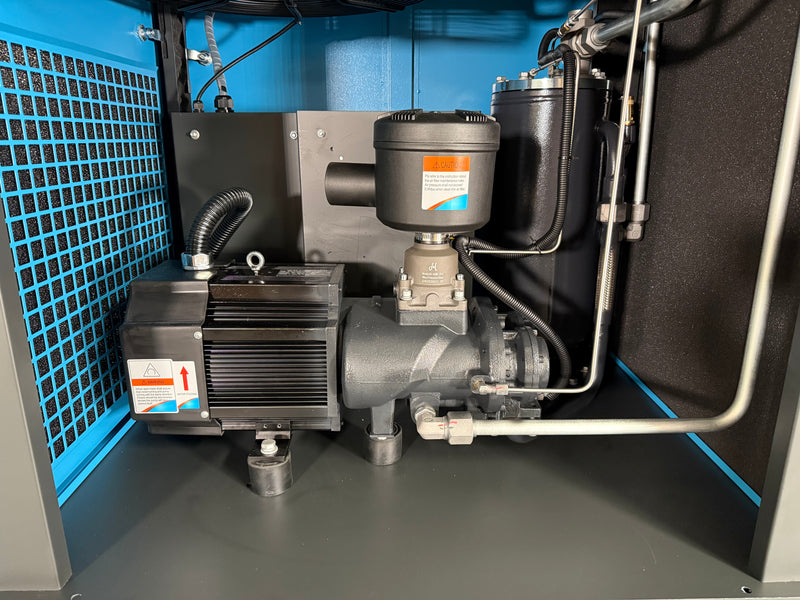

Built with a permanent magnet motor, direct-drive design, and variable speed drive technology, the VSD30 automatically adjusts compressor output based on real-time air demand. Instead of running at full load when the shop does not need it, the system produces only the air required. This helps reduce energy waste, pressure fluctuation, heat generation, and unnecessary mechanical wear.

The MAM6080 touchscreen controller gives operators clear access to pressure, temperature, operating status, alarms, maintenance information, WiFi connectivity, and real-time monitoring. With 220V / 60Hz / 3-phase power, 83 A full load current, IP54 dust and splash protection, a 100% duty cycle, and a 75 dB(A) operating noise level, the AERO-COMPRESSOR VSD30 is built for demanding daily operation.

Key Features

• 30 HP permanent magnet motor for efficient industrial performance
• VSD variable speed control adjusts compressor output to match real air demand
• 124 CFM at 100 PSI for high-volume compressed air applications
• 108 CFM at 145 PSI for demanding shop air pressure requirements
• Direct-drive rotary screw airend reduces belt maintenance and power loss
• MAM6080 touchscreen controller with WiFi and real-time monitoring
• 100% duty cycle for continuous professional operation

Built for Body Shops, Manufacturing, and Industrial Air Systems

This 30 HP industrial air compressor is a strong fit for auto body shops, mechanical repair shops, manufacturing facilities, woodworking shops, fabrication departments, maintenance teams, and production environments. It can support pneumatic tools, sanding stations, spray applications, CNC equipment, packaging tools, tire service systems, and general compressed air distribution.

The VSD30 is especially useful for facilities with changing air demand throughout the workday. When air consumption drops, the variable speed system reduces output instead of wasting energy through constant full-speed operation. This helps create a more stable, efficient, and reliable compressed air system.

Technical Specifications

Electrical installation must be completed by a qualified electrician in accordance with local electrical codes.

Why Choose the AERO-COMPRESSOR VSD30?

The AERO-COMPRESSOR VSD30 gives professional shops and industrial facilities the performance of a 30 HP rotary screw air compressor with the energy-saving benefits of variable speed technology. It is built for consistent compressed air, continuous-duty operation, reduced maintenance, and stable pressure in demanding work environments.
