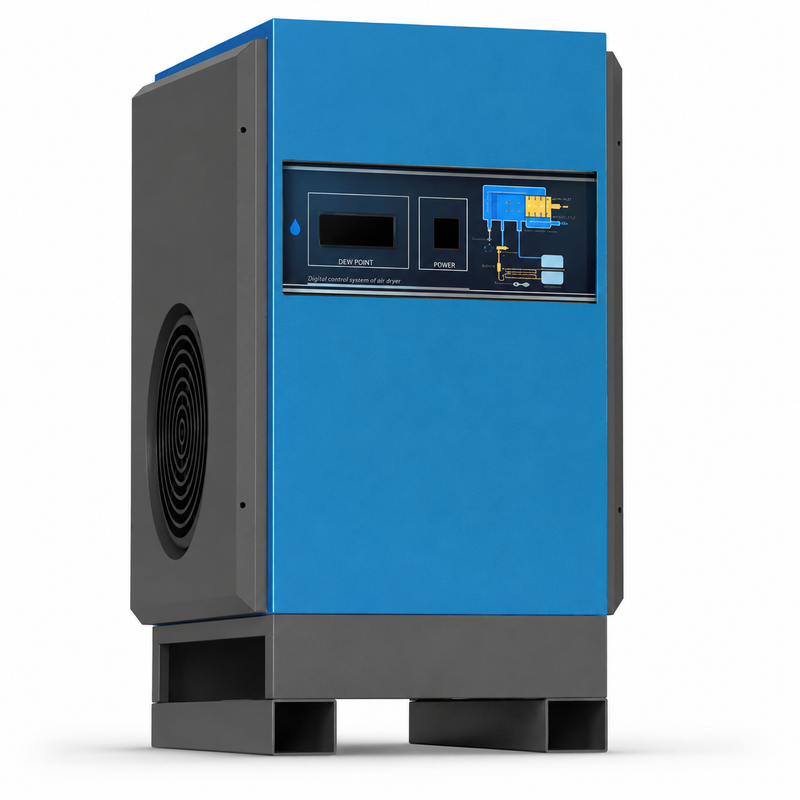

AERO 84 CFM Refrigerated Air Dryer (15–20 HP)
Compact Refrigerated Air Dryer for 15–20 HP Compressor Systems The AERO-DRYER 84 CFM is a compact refrigerated air d… See more
Compact Refrigerated Air Dryer for 15–20 HP Compressor Systems
The AERO-DRYER 84 CFM is a compact refrigerated air dryer designed to remove moisture from compressed air systems used in professional shops, auto body facilities, small manufacturing operations, and service departments. Matched for 15–20 HP air compressors, this dryer helps protect air tools, equipment, piping, filters, and downstream components from water contamination.
With a rated airflow of 84 CFM, a stable 36–50°F pressure dew point, and automatic condensate removal, this refrigerated dryer helps deliver cleaner, drier compressed air for daily shop use. The built-in antifreeze protection helps maintain reliable operation and protects the system from low-temperature freezing issues inside the refrigeration circuit.
The AERO-DRYER 84 CFM operates on 220V / 1-phase power and uses a compact footprint for easier installation near your compressor, air receiver, or filtration system. It is a practical upgrade for shops that want more consistent air quality for pneumatic tools, spray applications, sanding equipment, CNC machines, and general compressed air systems.
Key Features
- Rated airflow: 84 CFM for 15–20 HP compressor systems
- Refrigerated air dryer design helps remove moisture from compressed air
- Stable 36–50°F dew point for consistent air drying performance
- Antifreeze protection for improved reliability
- Automatic condensate removal reduces manual draining
- 220V / 1-phase power for common shop installation
- G1" air outlet for compressed air system connection
Designed for Shops That Need Cleaner, Drier Air
This 84 CFM refrigerated air dryer is ideal for auto body shops, mechanical repair shops, woodworking shops, light manufacturing, fabrication areas, tire service departments, and general industrial air systems. It helps reduce moisture-related issues such as water in air lines, tool wear, poor finish quality, corrosion, and inconsistent equipment performance.
Technical Specifications
| Model | AERO-DRYER 84 CFM |
| Product Type | Refrigerated Air Dryer |
| Recommended Compressor Size | 15–20 HP |
| Rated Flow | 84 CFM |
| Voltage | 220V / 1-Phase |
| Pressure Dew Point | 36–50°F |
| Maximum Inlet Temperature | 149°F |
| Air Outlet Size | G1" |
| Condensate Drain | Automatic Condensate Removal |
| Protection Feature | Antifreeze Protection |
| Dimensions | 16.1 × 20.5 × 28.5 in. |
| Weight | 99 lb |
Why Choose the AERO-DRYER 84 CFM?
The AERO-DRYER 84 CFM helps improve compressed air quality by removing moisture before it reaches your tools, machines, and air lines. For shops running a 15–20 HP air compressor, this 84 CFM refrigerated compressed air dryer is a compact and effective solution for reducing water-related damage, improving system reliability, and supporting cleaner daily operation.
Performance Data
| Rated Power | 15-20 HP HP |
| Air Flow @ 100 PSI | 84.0 CFM |
Physical Specs
| Voltage Options | 220V / 1-Phase |
Key Advantages
- Refrigerated air dryer matched for 15-20 HP Rated flow: 85 CFM; 220V / 1-Phase Dew point: 36-50 °F; max inlet temperature: 149 °F Air connection: G1" Dimensions: 16.1 × 20.5 × 28.5; weight: 99 lb
