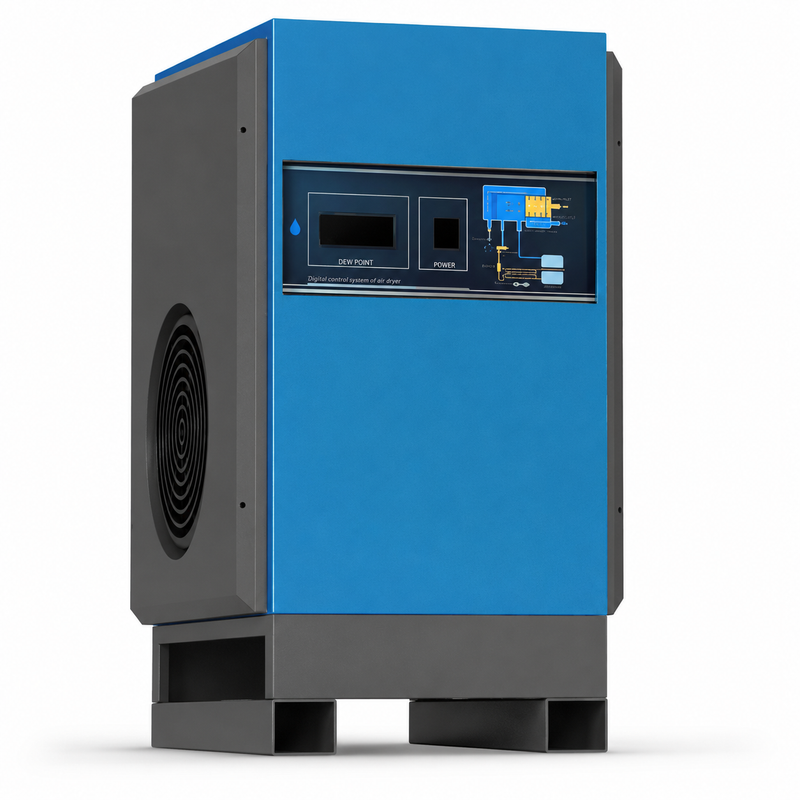

AERO 127 CFM Refrigerated Air Dryer (25–30 HP)
Refrigerated Air Dryer for 25–30 HP Compressor Systems The AERO-DRYER 127 CFM is a compact refrigerated air dryer de… See more
Refrigerated Air Dryer for 25–30 HP Compressor Systems
The AERO-DRYER 127 CFM is a compact refrigerated air dryer designed to remove moisture from compressed air systems used in auto body shops, repair facilities, manufacturing areas, woodworking shops, and light industrial environments. Matched for 25–30 HP air compressors, this dryer helps protect pneumatic tools, air lines, filters, machinery, and downstream equipment from water contamination.
With a rated airflow of 127 CFM, a stable 36–50°F pressure dew point, and automatic condensate removal, this refrigerated dryer helps provide cleaner, drier compressed air for daily shop operation. The built-in antifreeze protection helps improve reliability by protecting the refrigeration circuit during low-temperature operating conditions.
The AERO-DRYER 127 CFM runs on 220V / 1-phase power and is sized for mid-range compressed air systems. Its G1" air outlet makes it suitable for integration with rotary screw compressors, air receiver tanks, filtration systems, and shop air distribution lines.
Key Features
- Rated airflow: 127 CFM for 25–30 HP compressor systems
- Refrigerated air dryer design helps remove moisture from compressed air
- Stable 36–50°F dew point for consistent drying performance
- Antifreeze protection for improved operating reliability
- Automatic condensate removal reduces manual draining
- 220V / 1-phase power for common shop installation
- G1" air outlet for compressed air system connection
Designed for Shops That Need Cleaner, Drier Air
This 127 CFM refrigerated air dryer is ideal for auto body shops, mechanical repair shops, woodworking operations, fabrication areas, CNC workstations, tire service departments, maintenance rooms, and small manufacturing facilities. It helps reduce moisture-related problems such as water in air lines, corrosion, tool wear, poor finish quality, filter overload, and inconsistent equipment performance.
Technical Specifications
| Model | AERO-DRYER 127 CFM |
| Product Type | Refrigerated Air Dryer |
| Recommended Compressor Size | 25–30 HP |
| Rated Flow | 127 CFM |
| Voltage | 220V / 1-Phase |
| Pressure Dew Point | 36–50°F |
| Maximum Inlet Temperature | 149°F |
| Air Outlet Size | G1" |
| Condensate Drain | Automatic Condensate Removal |
| Protection Feature | Antifreeze Protection |
| Dimensions | 20.5 × 25.2 × 33.5 in. |
| Weight | 123 lb |
Why Choose the AERO-DRYER 127 CFM?
The AERO-DRYER 127 CFM helps improve compressed air quality by removing moisture before it reaches your tools, machines, and air distribution lines. For facilities running a 25–30 HP air compressor, this 127 CFM refrigerated compressed air dryer is a compact and effective solution for reducing water-related damage, improving system reliability, and supporting cleaner daily operation.
Performance Data
| Rated Power | 25-30 HP HP |
| Air Flow @ 100 PSI | 127.0 CFM |
Physical Specs
| Voltage Options | 220V / 1-Phase |
Key Advantages
- Refrigerated air dryer matched for 25-30 HP Rated flow: 127 CFM; 220V / 1-Phase Dew point: 36-50 °F; max inlet temperature: 149 °F Air connection: G1" Dimensions: 20.5 × 25.2 × 33.5; weight: 123 lb
