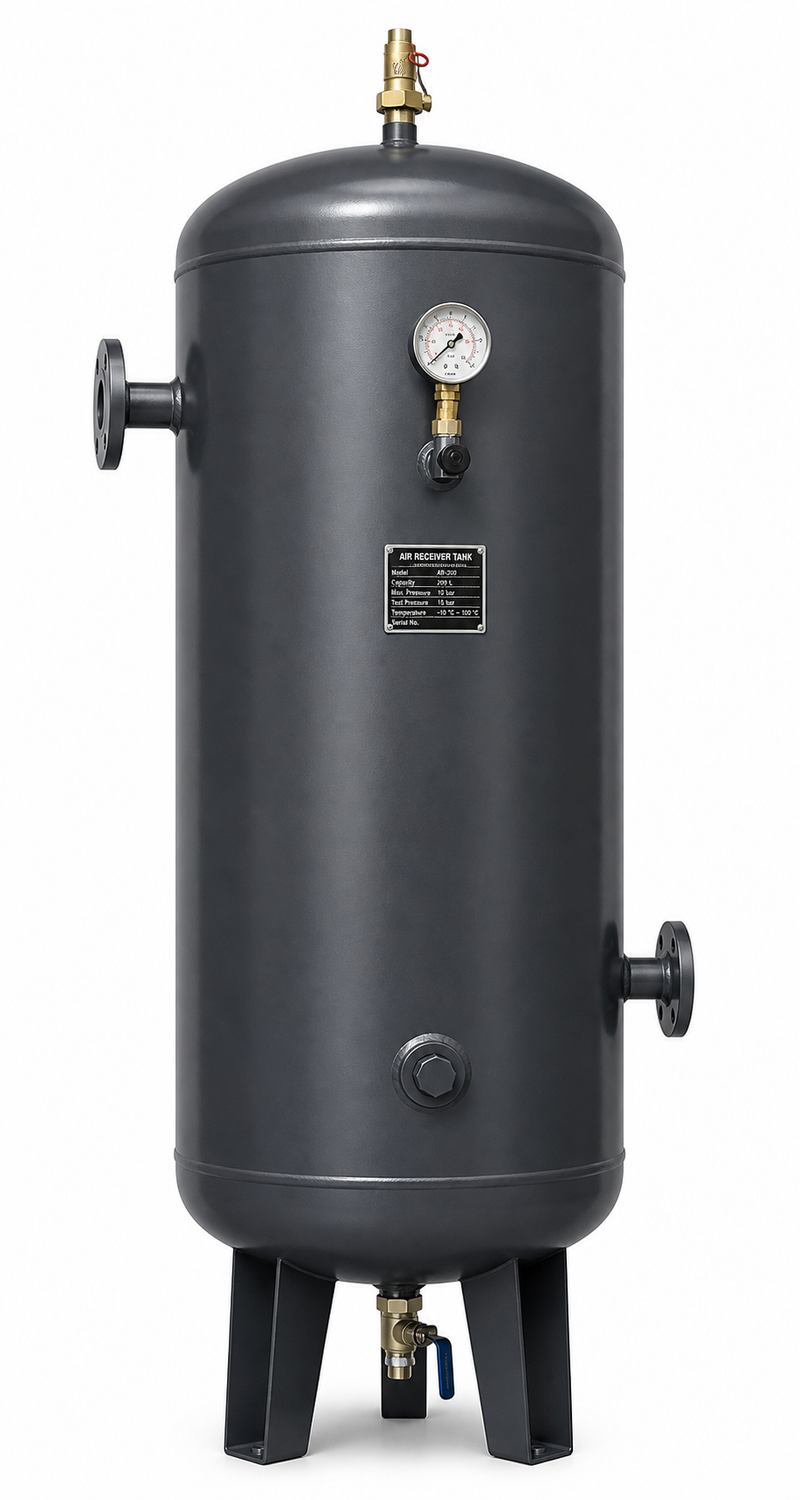

AERO 80-Gallon ASME Vertical Air Receiver Tank
80 Gallon ASME Air Receiver Tank for Compressed Air Systems The AERO-AIR TANK 80 Gallon ASME Vertical Air Receiver i… See more
80 Gallon ASME Air Receiver Tank for Compressed Air Systems
The AERO-AIR TANK 80 Gallon ASME Vertical Air Receiver is designed to add reliable compressed air storage to professional shops, service departments, body shops, and small industrial air systems. With an 80-gallon capacity and 145 PSI maximum working pressure, this vertical air tank helps stabilize pressure, reduce compressor cycling, and provide reserve air during peak demand.
Built to ASME Section VIII standards, this air receiver is a strong choice for facilities that need a compliant and dependable compressed air storage solution. The vertical design saves floor space while supporting steady air supply for pneumatic tools, spray equipment, tire inflation, sanding stations, general shop air, and light industrial applications.
Adding an air receiver tank can improve the performance of your compressor system by reducing short cycling, helping manage air demand spikes, and supporting more consistent downstream pressure. The AERO-AIR TANK 80 is a practical upgrade for shops looking to improve compressed air efficiency, stability, and system reliability.
Key Features
- 80-gallon vertical air receiver for compressed air storage
- ASME Section VIII certified for professional shop and industrial use
- 145 PSI maximum working pressure
- Vertical space-saving design for compact installation
- 1" NPT inlet/outlet for main air connection
- 1/2" NPT safety valve port for system protection
- 1/2" NPT drain port for condensate removal
Built for Shops, Garages, and Industrial Air Systems
This 80 gallon air compressor tank is ideal for auto body shops, mechanical repair shops, manufacturing workstations, woodworking shops, tire service areas, farm shops, and advanced home garages. It can be used with rotary screw compressors, piston compressors, air dryers, filtration systems, and general compressed air distribution setups.
Technical Specifications
| Model | AERO-AIR TANK 80 Gallon |
| Product Type | Vertical Air Receiver Tank |
| Tank Capacity | 80 Gallons |
| Certification | ASME Section VIII |
| Maximum Working Pressure | 145 PSI |
| Tank Orientation | Vertical |
| Diameter | 21.7 in. |
| Height | 61.1 in. |
| Weight | 200 lb |
| Inlet / Outlet | 1" NPT |
| Safety Valve Port | 1/2" NPT |
| Drain Port | 1/2" NPT |
Why Choose the AERO-AIR TANK 80 Gallon?
The AERO-AIR TANK 80 Gallon is a simple but important upgrade for compressed air systems that need better pressure stability and reserve air capacity. By adding storage between the compressor and air demand, this ASME air receiver tank helps reduce compressor cycling, improve air delivery consistency, and support a more efficient shop air system.
Performance Data
| Max Working Pressure | 145.0 PSI |
Physical Specs
| Tank Capacity | 80 gal |
| Certification | ASME Sec. VIII |
Key Advantages
- ASME Sec. VIII vertical air receiver 80 gallon capacity; 145 PSI max working pressure Diameter: 21.7 in.; height: 61.1 in.; weight: 200 lb Inlet/outlet: 1" NPT; safety valve port: 1/2" NPT; drain port: 1/2" NPT
